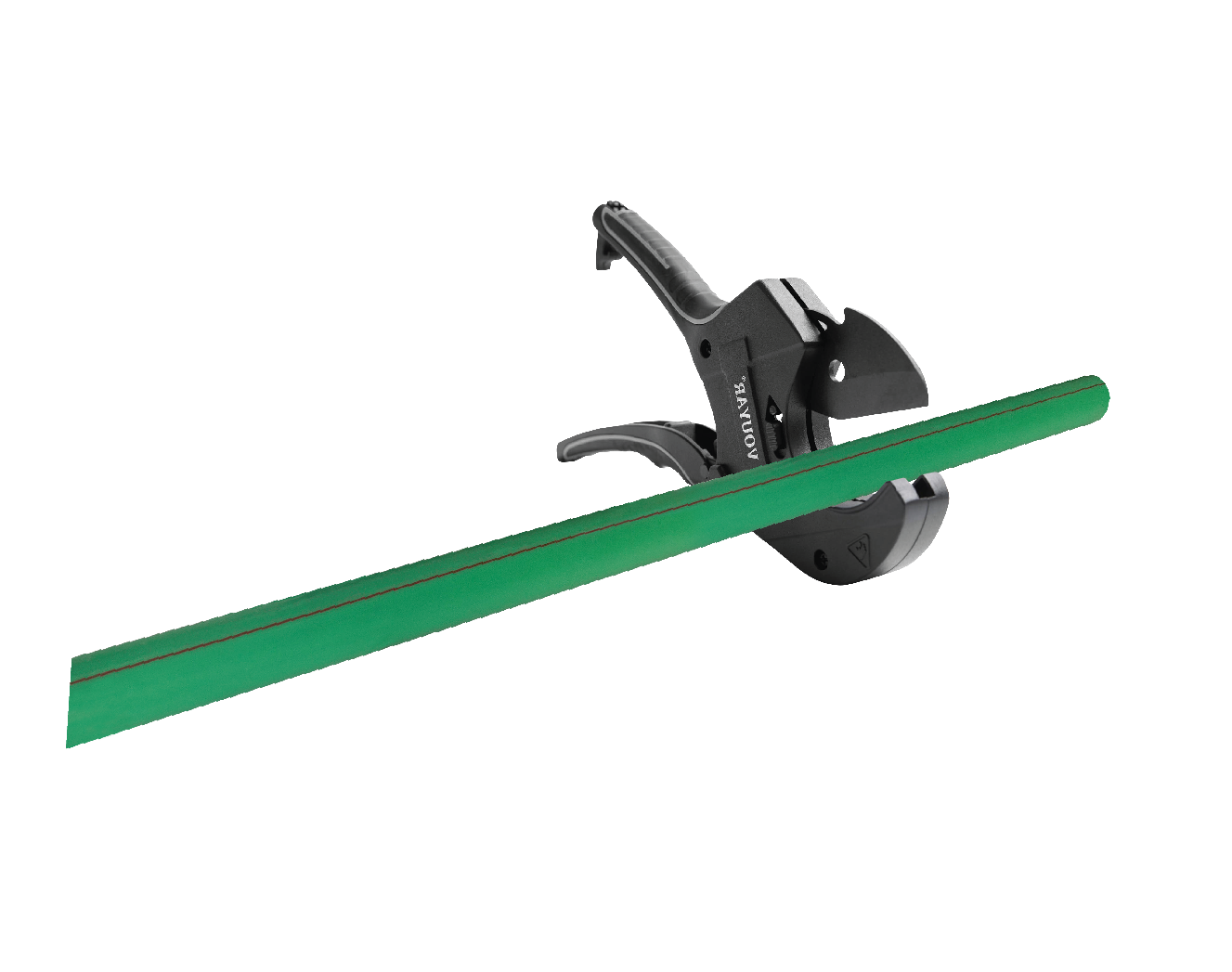

Step 1 — CUT AND CLEAN
Cut pipes squarely (perpendicular to its axis). Clean both ends to remove dust and debris.
Step 2 — HEAT

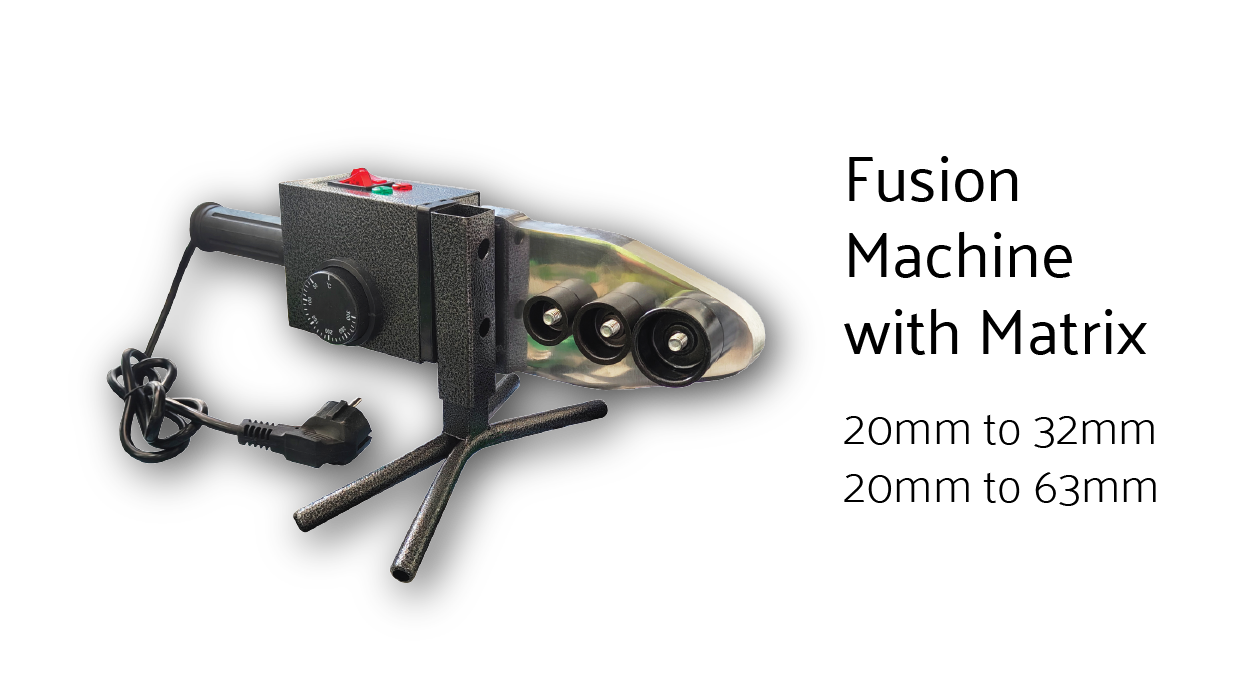

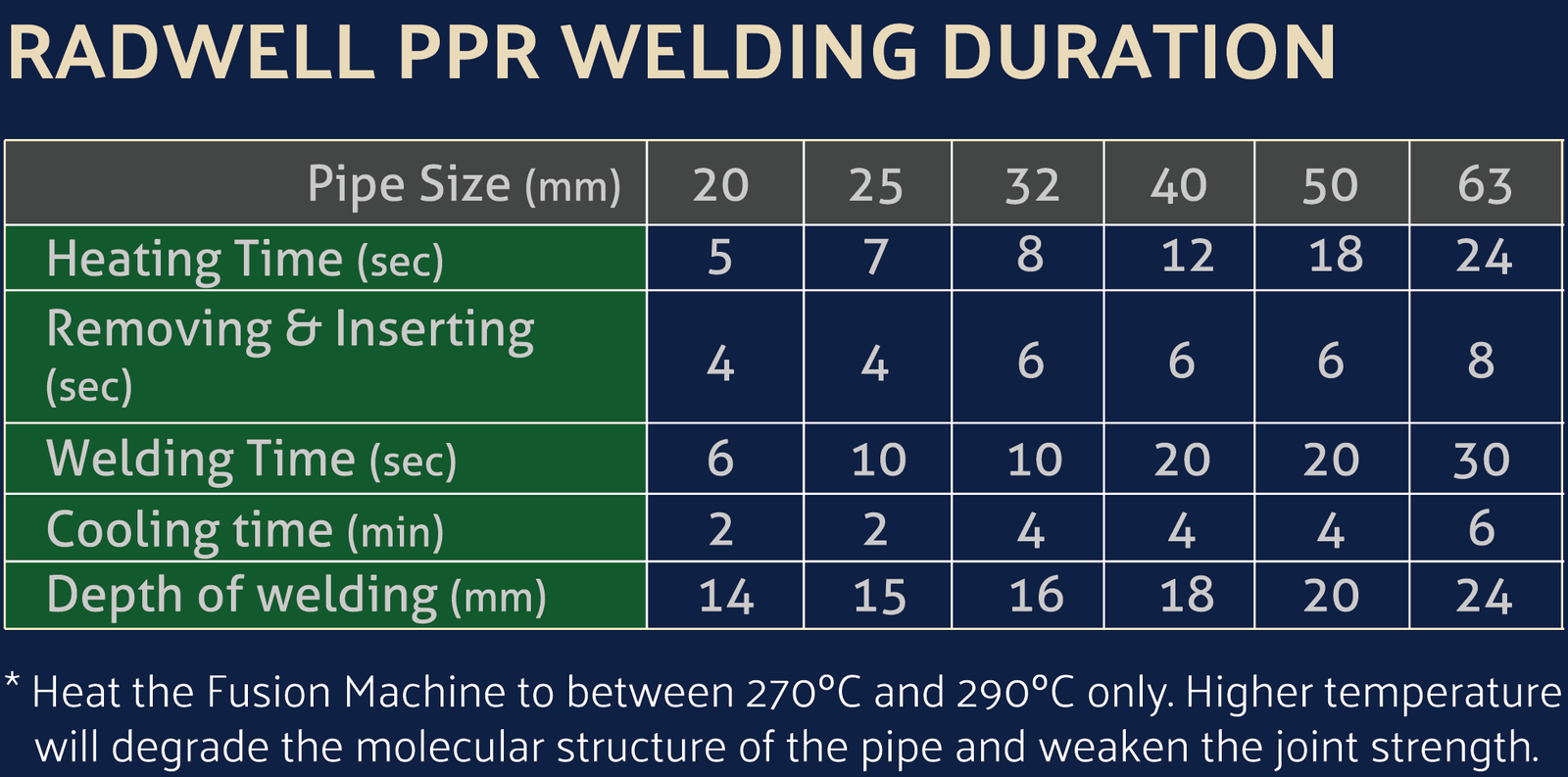

Insert both pipe and fitting into the fusion tool’s heating sockets. Heat for the time specified in the welding duration table based on pipe size.

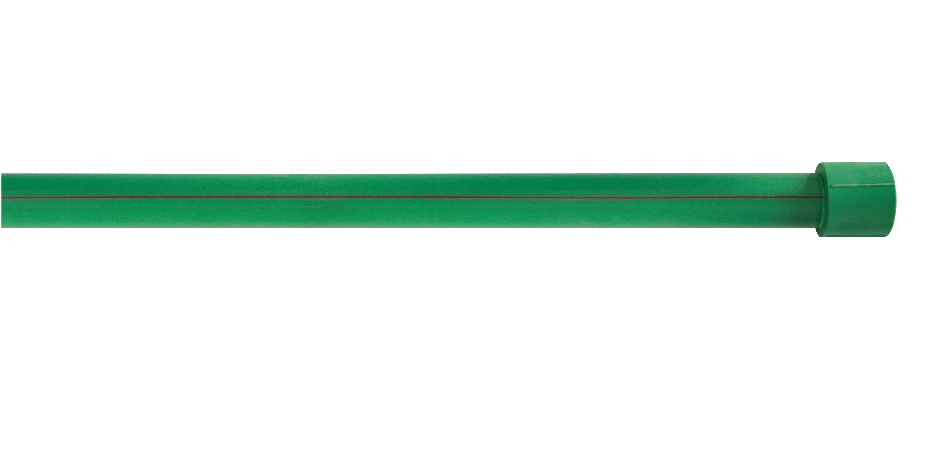

Step 3 — REMOVE
Simultaneously remove both parts and insert the pipe into the fitting within the above table’s allowed time frame. (remove + insert)
