Strip

Strip

GARDNER TPI Strips are created as a versatile alternative to wood, multipurpose in usage. GARDNER TPI Strips are the most adaptable of all GARDNER TPI Woods. With their straight grain texture, GARDNER TPI Strips can resemble the appearance of Lawaan or Tanguile wood. Additionally, the V-Cut profile adds to the aesthetic appeal and versatility as a wood substitute. GARDNER TPI Strips are ideal for interior or exterior ceiling, louver, sun shade, lattice, or fencecladdings. Architectural designs using GARDNER TPI Strips are as limitless as the imagination. Laying out GARDNER TPI Strip with gaps between strips of the exterior ceiling allows for air to pass through and provides passive cooling for the roof structure. This will help save energy consumption and makes an already green GARDNER TPI Strip more environment-friendly.

SPECIFICATIONS

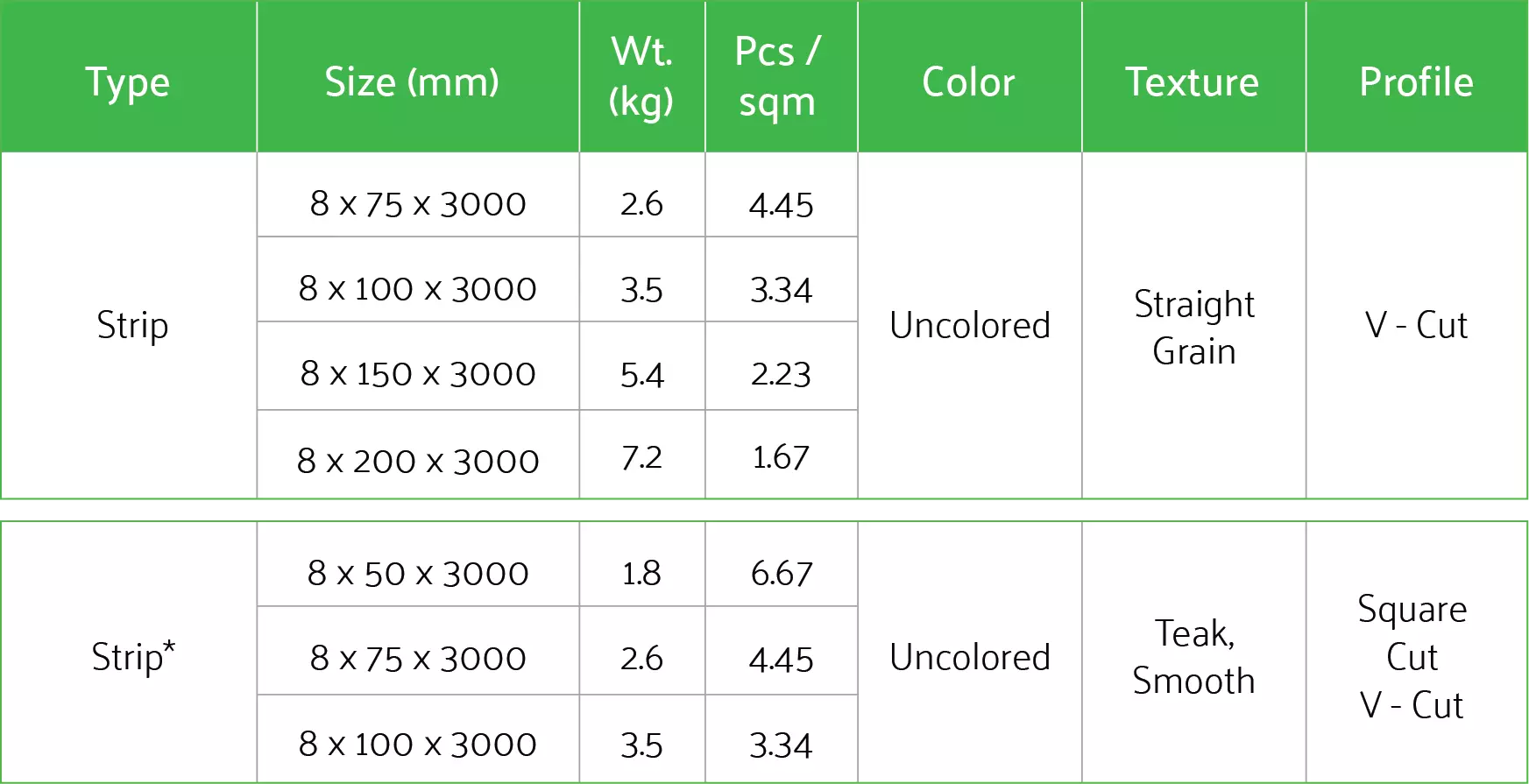

Special Order item GARDNER TPI Strips are available in widths from 75mm to 200mm with 8mm thickness and 3000mm lengths. Strips are uncolored, with a straight grain texture and a V-Cut profile.

Strip Eave Ceiling Installation

Frame Type :
Galvanized Frames
(0.4mm thk Double Furring, 0.8mm thk Carrying Channel)
Treated Wood Frames (2×2)

Frame Spacing
Double Furring spaced at 0.4m. Carrying Channel spaced at 0.9m
Timber Frames spaced at 0.6m x 0.6m

Screw
GF Screw (G.I.), WF Screw (wood)
One screw per joint (50mm to 75mm Strip width)
Two screws per joint (100mm and up Strip width)
