Standard Pro

EASTBERG GM Standard Pro is a lightweight, heat resistant, high strength gypsum board with a smooth surface. Easy to drill, cut, bend, and install, EASTBERG GM Standard Pro Board has an ivory-white front paper face that is ultra-smooth and dense. This allows for better paint coverage, using less paint and no paint peeling. The high strength paper is also attached to the gypsum core completely and does not peel off. EASTBERG GM Standard Pro is a versatile product and can be fixed to metal frames, timber frames or masonry walls, providing ceilings and walls with remarkable rigidity, durability, fire, heat and acoustic properties. EASTBERG GM Standard Pro is ideal for interior walls and ceilings.

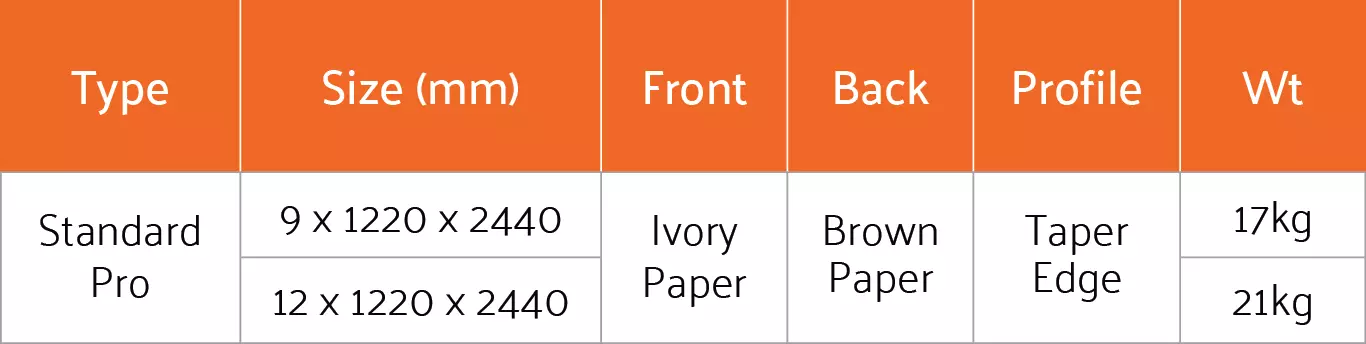

SPECIFICATIONS

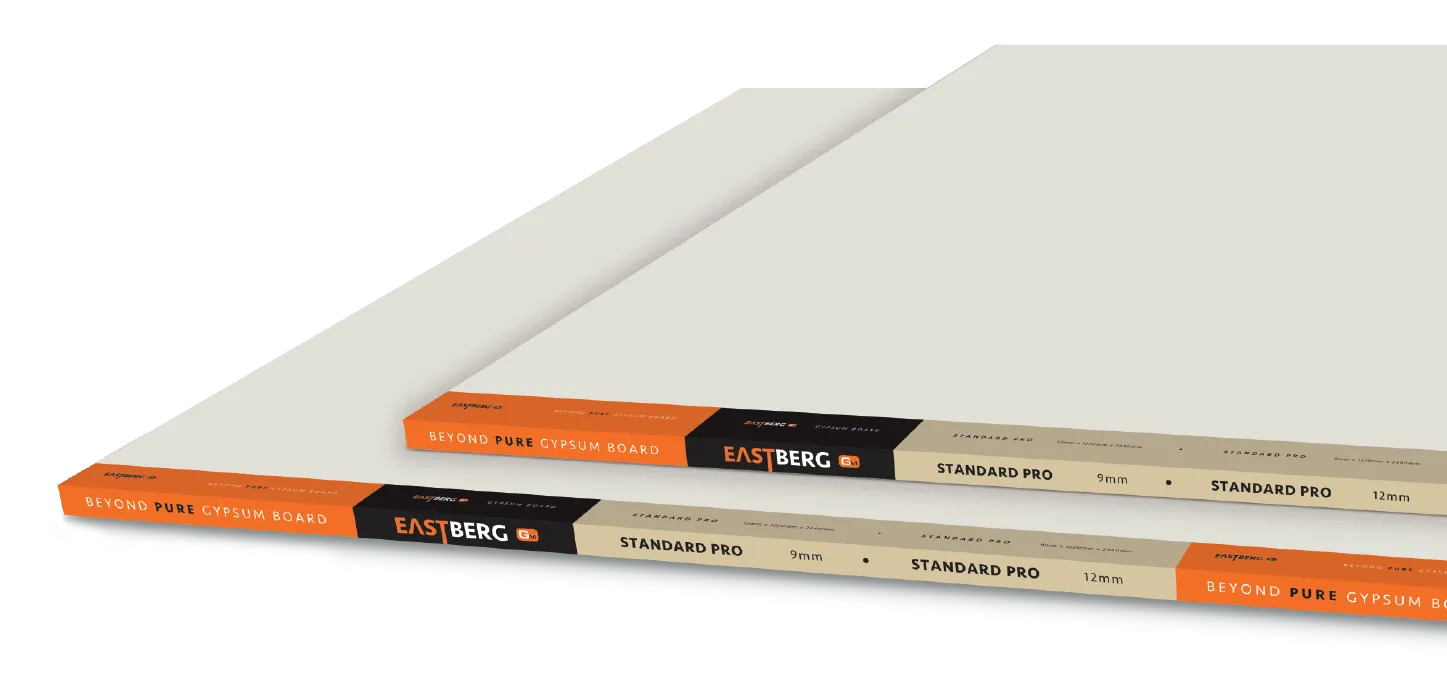

EASTBERG GM Standard Pro Boards come in 4ft x 8ft (1220mm x 2440mm) sizes with 9mm or 12mm thickness. They have an ivory front paper and a brown back paper with a taper edge profile.

Ceiling and Wall Installation

Frame Type

For Ceiling
Galvanized Frames
0.4mm Double Furring, 0.8mm Carrying Channel
Wood Frames – 2” x 2” Treated Wood

For Walls

Galvanized Frames
0.5mm Stud and Tracks
Wood Frames – 2” x 4” Treated Wood

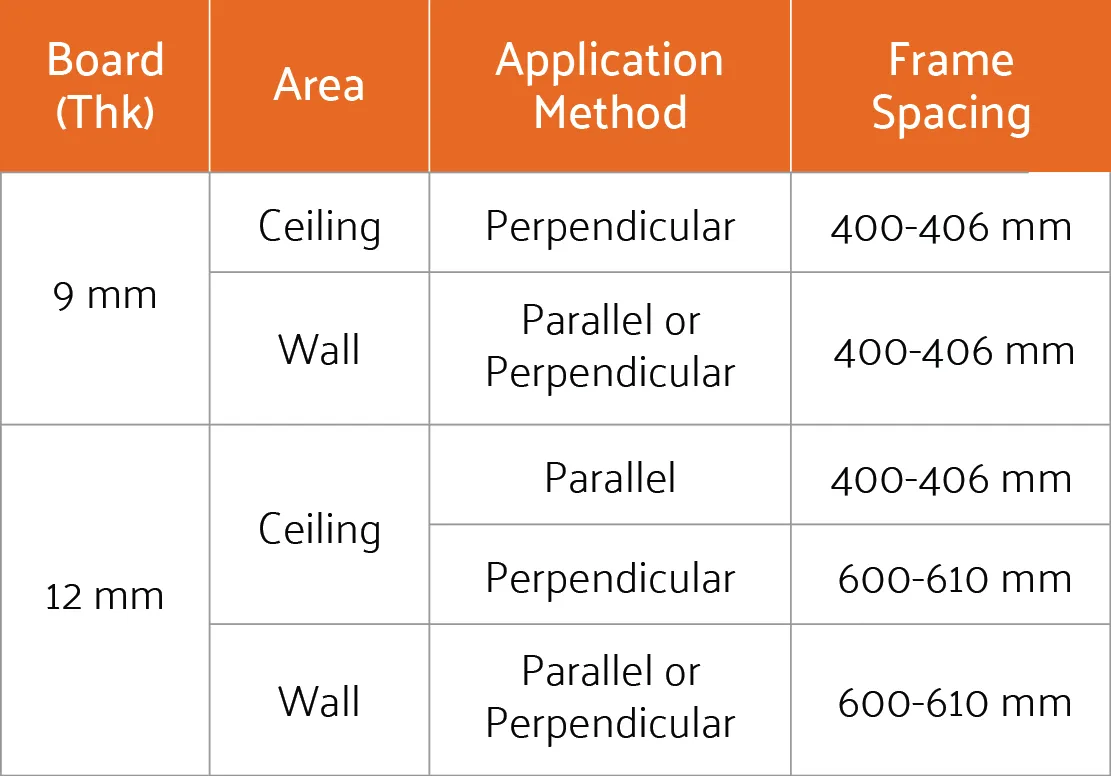

Frame Spacing
Follow recommended frame spacing for ceiling and wall based on the thickness of the board and the application method, with the board either perpendicular or parallel to the frames.

Screw
Gypsum Screw #6×1” and #6×1-1/2”
