Impact Pro

Impact Pro

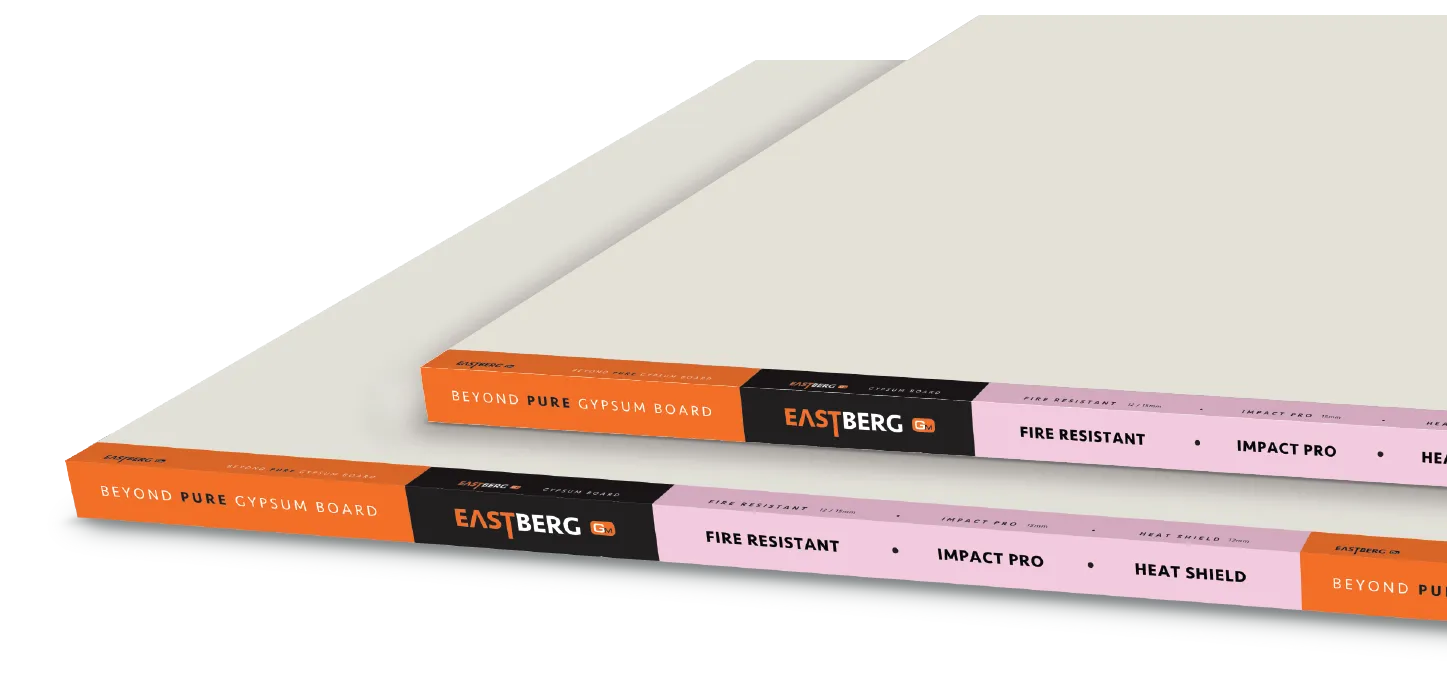

EASTBERG GM Impact Pro is a high strength board that can resist and absorb impact up to Severe Duty Performance, the highest level of impact resistance in accordance with British Standard BS 5234-2. EASTBERG GM Impact Pro is produced with extra high density gypsum core enhanced with special fibers. This allows for applications that are susceptible to high chance of accidents such as high traffic areas or heavy industrial areas. EASTBERG GM Impact Pro is well-suited for interior walls in areas that are susceptible to accidents or heavy impact. These include high-traffic zones and industrial environments commonly found in hospitals, malls, schools, and public buildings.

SPECIFICATIONS

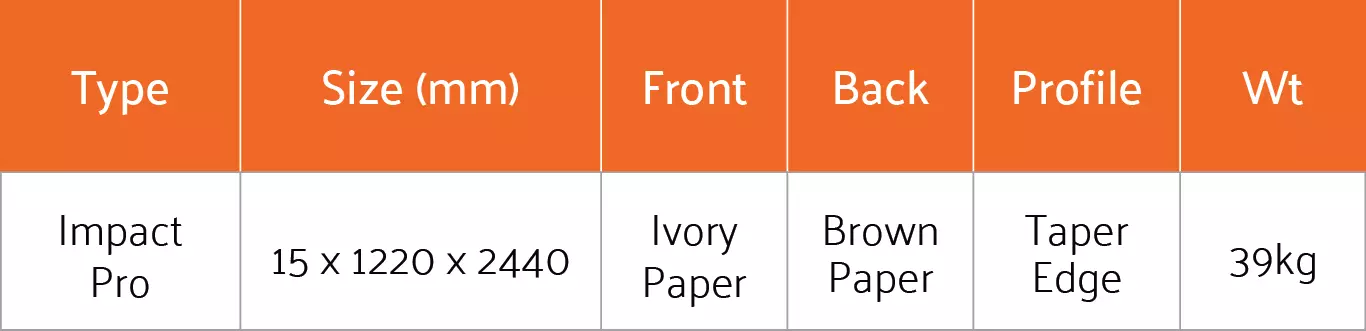

EASTBERG GM Impact Pro Boards come in 4ft x 8ft (1220mm x 2440mm) sizes with 15mm thickness. They have an ivory front paper and a brown back paper with a taper edge profile.

WALL INSTALLATION

Frame Type

For Walls

Galvanized Frames

0.5mm Stud and Tracks
Wood Frames – 2” x 4” Treated Wood

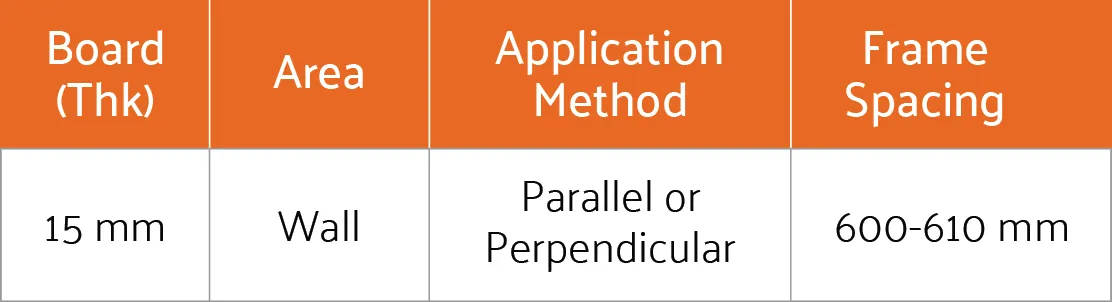

Frame Spacing
Follow recommended frame spacing for ceiling and wall based on the thickness of the board and the application method, with the board either perpendicular or parallel to the frames.

Screw
Gypsum Screw #6×1” and #6×1-1/2”

Impact Pro Product Installation 2

For walls, leave a 10mm gap from the ceiling/floor and refrain from fixing at the top and bottom tracks.
