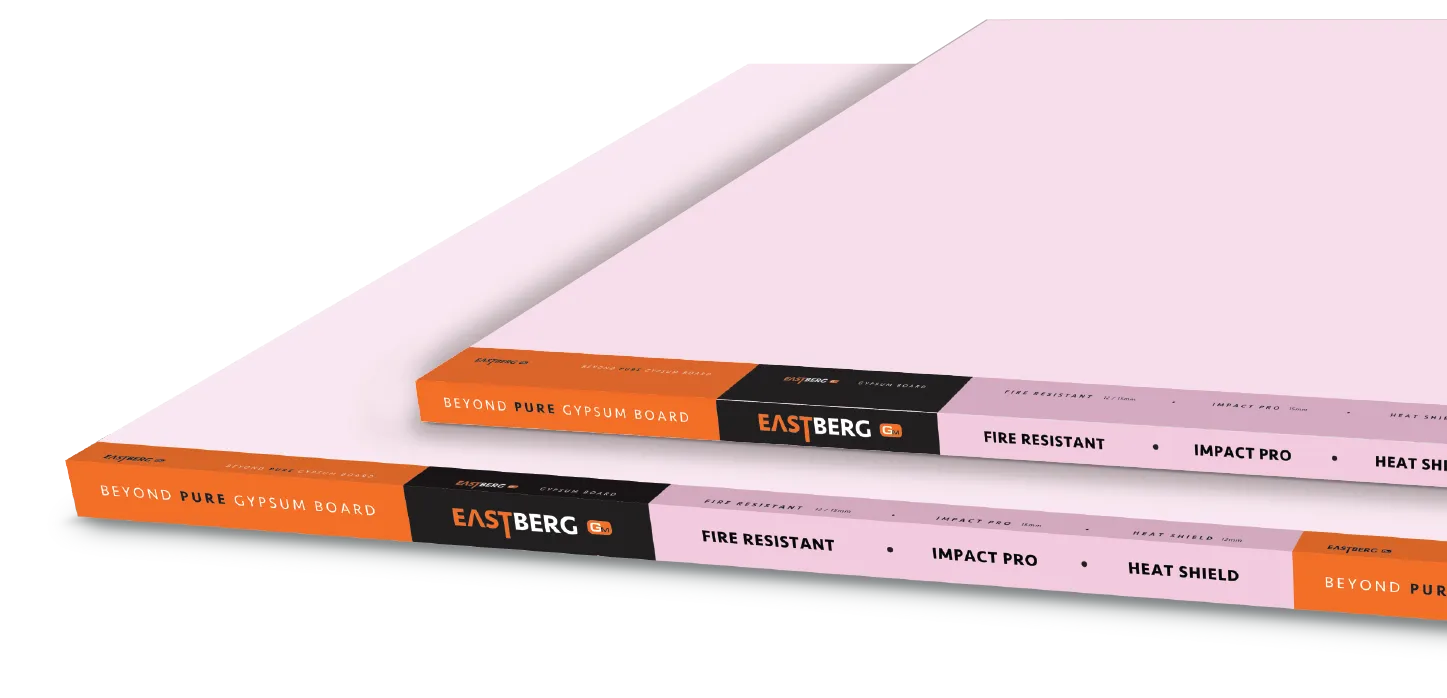

EASTBERG GM Fire Resistant Boards have gypsum cores reinforced with fibers and additives and layered with papers having flame retardant properties. Recommended for wall and ceiling systems where high fire protection is required, EASTBERG GM Fire Resistant Boards are ideal for high rise buildings, fire exit walls, theaters, and malls. With proper design, together with insulations, framings, and EASTBERG GM Fire Resistant Boards, fire-rated ceiling and wall systems can be achieved for up to 4 hours.
Frame Type
For Ceiling
Galvanized Frames
0.4mm Double Furring, 0.8mm Carrying Channel
Wood Frames – 2” x 2” Treated Wood
For Walls
Galvanized Frames
0.5mm Stud and Tracks
Wood Frames – 2” x 4” Treated Wood

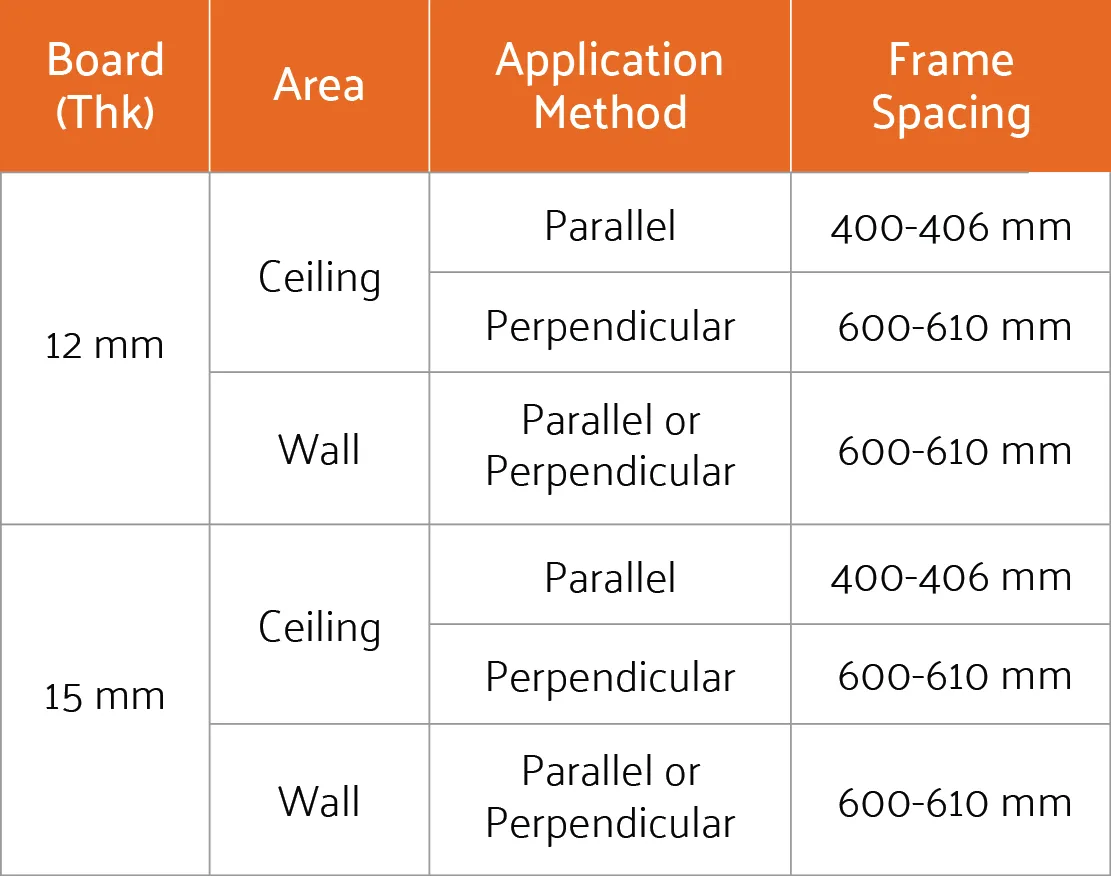

Frame Spacing
Follow recommended frame spacing for ceiling and wall based on the thickness of the board and the application method, with the board either perpendicular or parallel to the frames.
Screw
Gypsum Screw #6×1” and #6×1-1/2”
